Screw Barrel for Aluminium Composite Panel-Sheet-Extrusion

Screw Barrel for Aluminium Composite Panel-Sheet-Extrusion

Inquiry Now

LDPE , PP Sheet extrusion Screw Barrel.

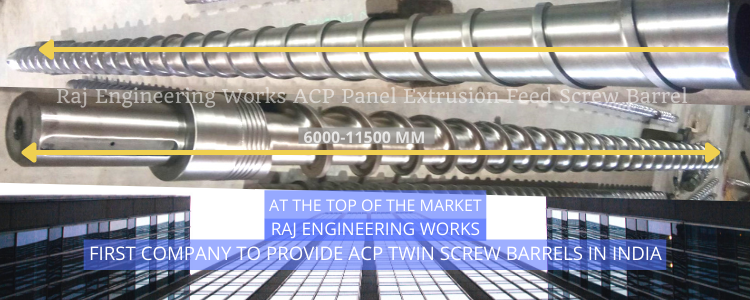

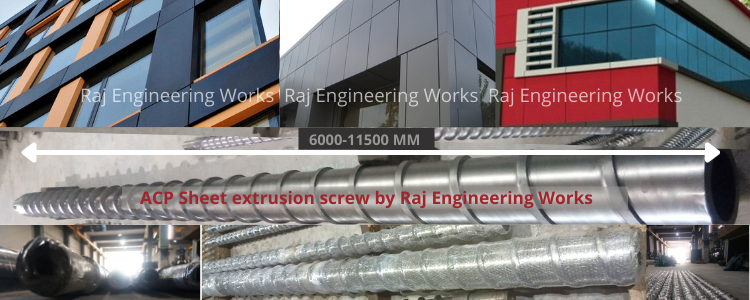

Raj Engineering Works manufacture screw barrel for ACP plastic sheet extrusion or Aluminium Composite Panel Extrusion sheet plant.

These aluminium composite panel are made using LDPE or LLDPE sheet.

Our High Precision and fair price policy make us the most reliable screw barrel manufacturer for plastic extrusion industry.

Single Screw Barrel

Twin Screw Barrel for ACP

(First time in India)

Screw diameter up to 250 mm.
Length 4500-12000 mm.
L/D ratio: 30 to 60

Material base - SS 2940/ 1.8509/ 41CrAlMo7
Bimetallic coated with world's most advanced specially developed steel alloys.

Read more about screw base material, life enhancing protective coatings and bimetallic version of feed screw barrels

Highest range of abrasive wear, corrosive wear resistance alloys including Tungsten Carbide composite with 88% Tungsten presence.

Gas nitriding- Thickness from 0.5 to 0.7 mm, hardness ~ 60-70 HRC ~ 1000 HV.

Production time- Within 4 weeks depending on the complexity of the part.

Nitriding: Gas medium, Liquid medium, Plasma Medium (Require special order from customer)

Specialized in Bimetallic coating, We offers guidance for different type of bimetallic and ceramic coatings and their application.

Please call at +91-8128381431 for technical discussion
